Casement Door

Casement doors from WAW are outward-opening aluminium doors crafted for gracious entrances, clear sightlines and reliable weather protection. Ideal for balconies, terraces and main entrances, they deliver effortless ventilation and strong thermal/acoustic performance when specified with Double-Glazed Units or laminated acoustic glass - making them a great fit where comfort, security and clean aesthetics matter.

Constructed from high-strength 6063-T6 aluminium with robust thresholds and concealed reinforcements, our casement doors use long-life sealing and EPDM gaskets for lasting air- and water-tightness. Precision wedge-clamped and butt hinges, multipoint locking options, stainless-steel hardware and optional motorised operation ensure smooth, secure function for large and heavy shutters. Available in powder-coat and wood-finish options, these doors are configurable in bespoke sizes, finishes and glass choices to match project needs - You desire, we design.

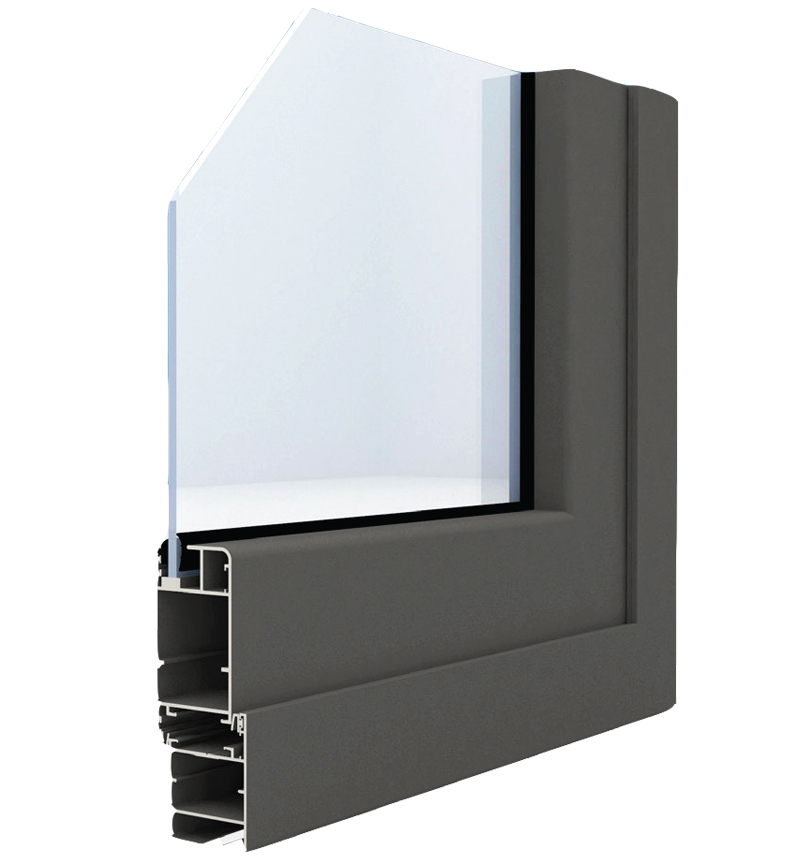

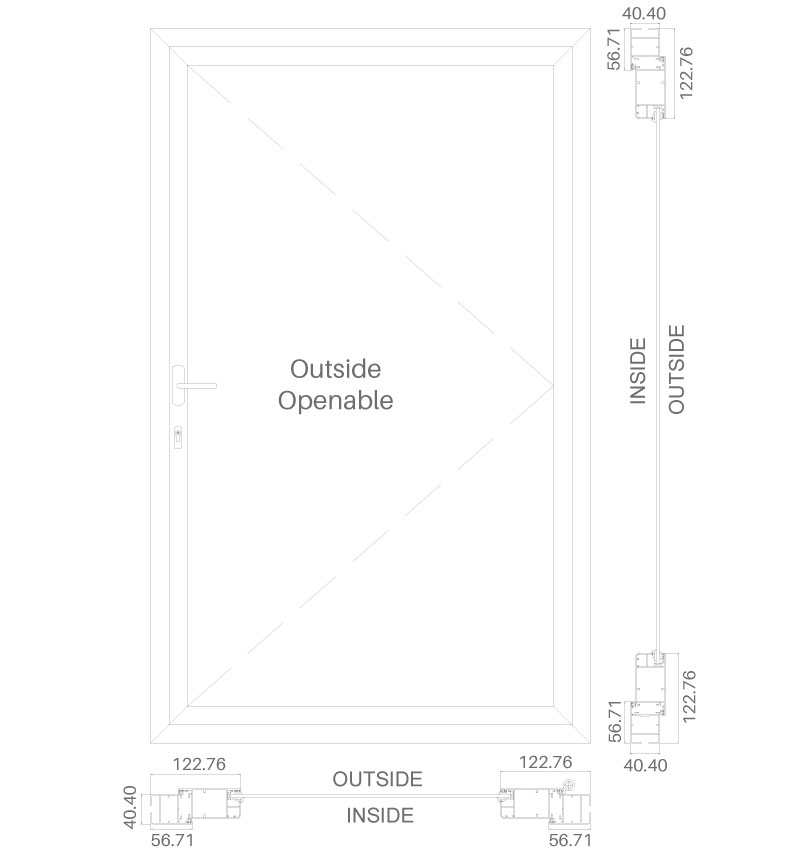

CD - 40

    This is an ideal solution for residences, apartment flats and commercial buildings offering impressive looks and functional excellence.

    • Shutter Size - 40 mm x 85 mm
    • Frame Size - 40 mm x 50 mm
    • Door Height - Max. 2400 mm
    • Sash Width - Max. 1000 mm
    • Sash Weight - Max. 100 Kgs
    • Hardware - Single Point Locking
    • Hinge - Butt Hinge
    • Joinery Detail - 45° with the corner connector
    • Glazing Options - Single glass | HPL sheet
    • Glazing Thickness - 4 mm to 8 mm
    • Mosq. Mesh - Retractable
    • Finish - Powder coating (Satin | Textured finish | Wood effect powder coating)
    • Operating - Side hung

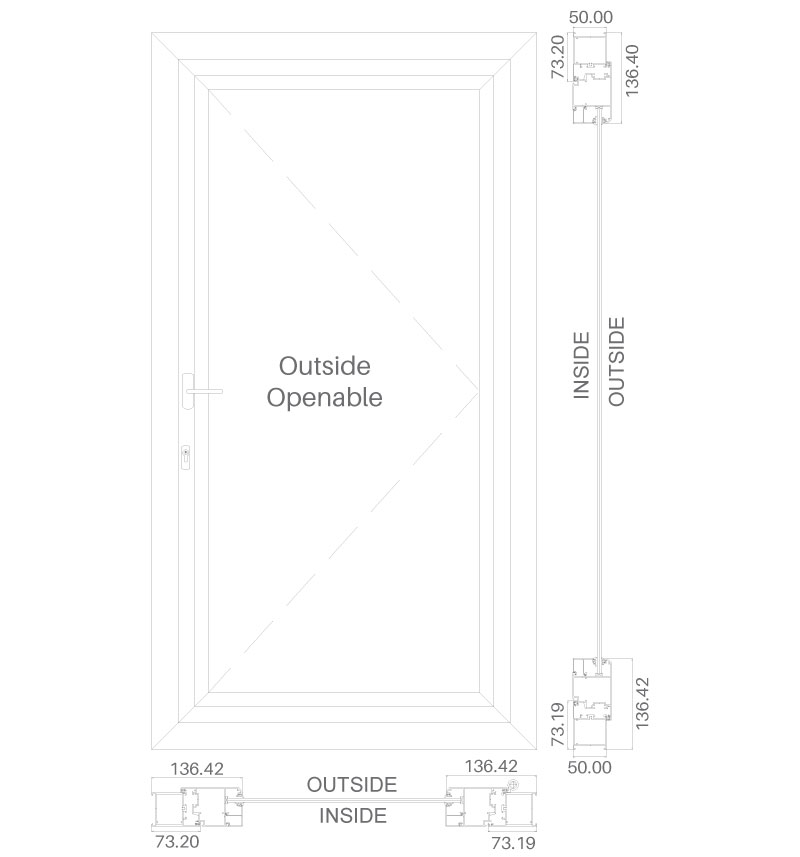

CD - 50

    CD-50 is exclusively designed for bigger door openings and is compatible to fit safety glass and glass with integrated blinds.

    • Shutter Size - 50 mm x 100 mm
    • Frame Size - 50 mm x 73 mm
    • Door Height - Max. 3000 mm
    • Sash Width - Max. 1200 mm
    • Sash Weight - Max. 180 Kg.
    • Hardware - Multi Point Locking
    • Hinge - Butt Hinge
    • Joinery Detail - 45° with the corner connector
    • Glazing Options - Single | Laminated | DGU | DGU With Integrated Blinds
    • Glazing Thickness - 5 mm 39 mm
    • Finish - Powder coating (Satin | Textured finish | Wood effect powder coating)
    • Operating - Side hung

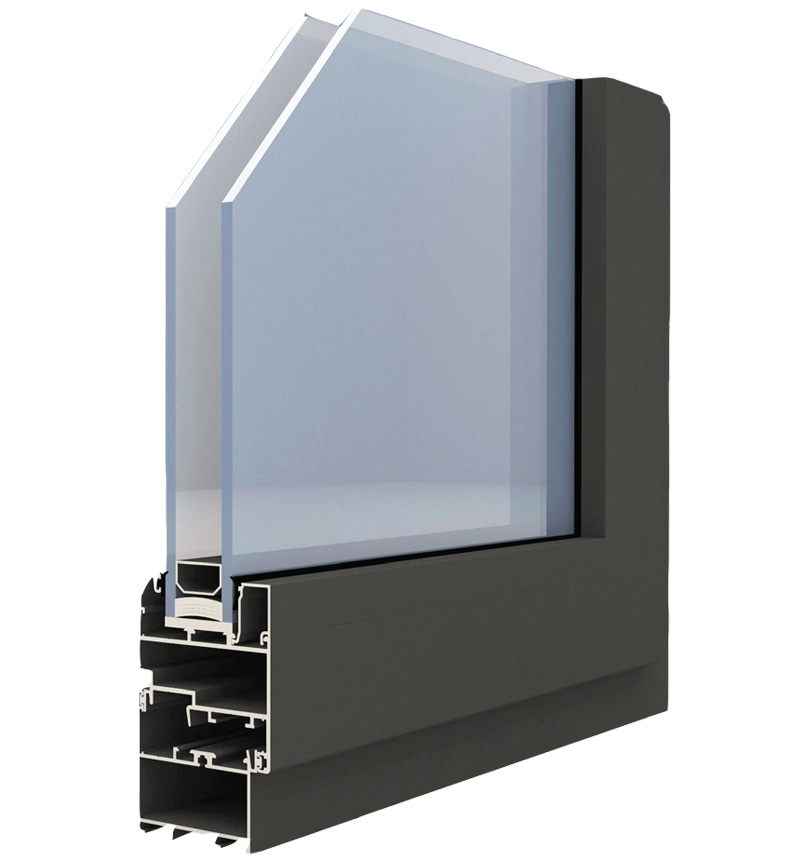

CD - 60

    CD-60 is exclusively designed & engineered for heavy industrial application, recurring use over years and inside/inward opening.

    • Shutter Size - 60 mm x 81 mm
    • Frame Size - 60 mm x 61 mm
    • Door Height - Max. 3000 mm
    • Sash Width - Max. 1200 mm
    • Sash Weight - Max. 200 Kgs
    • Hardware - Multi Point Locking
    • Hinge - Butt Hinge
    • Joinery Detail - 45° with the corner connector
    • Glazing Options - Single | Laminated | DGU | DGU With Integrated Blinds
    • Glazing Thickness - 5 mm to 44 mm
    • Finish - Powder Coating (Satin | Textured finish | Wood effect Powder Coating)
    • Opening - Side Hung
