Casement windows gives higher air tightness and sound insulation then sliding windows. It reduces the transition of temperature from inside out and outside in. In the hot and tropical region like Gujarat where temperature goes upto 45 Degree in summer days, it reduces the cooling loss created by air conditioners and helps in saving of the electricity bills.
Use of Double glass (DGU) can be considered to achieve higher sound and heat insulation. Bhavya aluminum provides a vast range of options of Powder Coating, Anodizing and Wooden finish coating for Windows to create best aesthetic combination with surrounding interior/exterior design. We Use all the hardware from world best Italian manufacturer "Giesse" as standard.
At Bhavya, we always use EPDM Gasket for Air and Water tightness with Longer Life.
We use Specially designed wedge clamped hinges to withstand shutter load up to 75kgs for smooth trouble free operation.

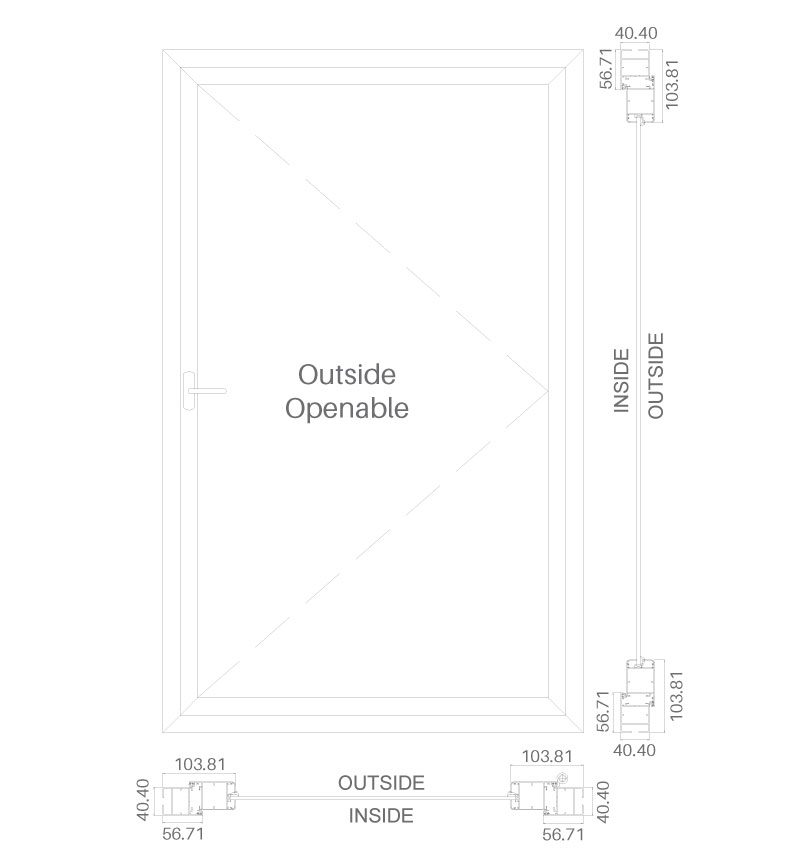

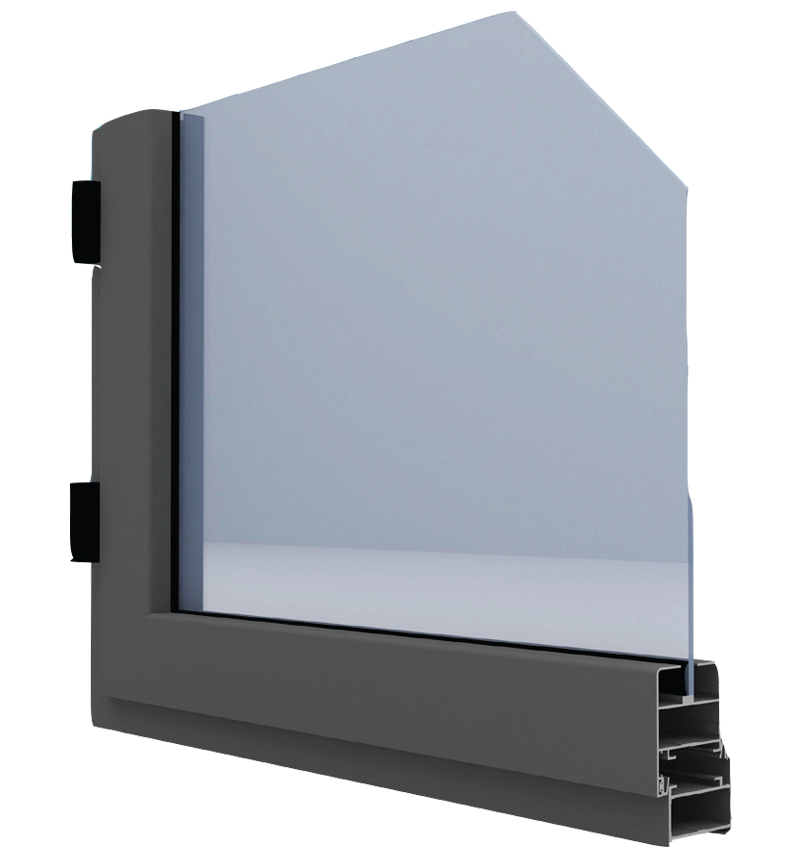

CV - 40
CV-40 has been designed for smaller rooms, bathrooms, powder rooms and so on. It is designed taking into consideration the opening available and the quick ventilation needed for smaller rooms.
Shutter Size - 40 mm x 51 mm
Frame Size - 40 mm x 39 mm
Window Height - Max. 1000 mm
Sash Width - Max.600 mm
Sash Weight - Max. 25 Kgs
Hardware - Single / Multi-point Locking
Hinge - Butt Hinge / Friction Hinge
Joinery Detail - 45° with corner connector
Glazing Options - Single
Glazing Thickness - 5 mm / 6 mm (W/O. Glazing Clip)

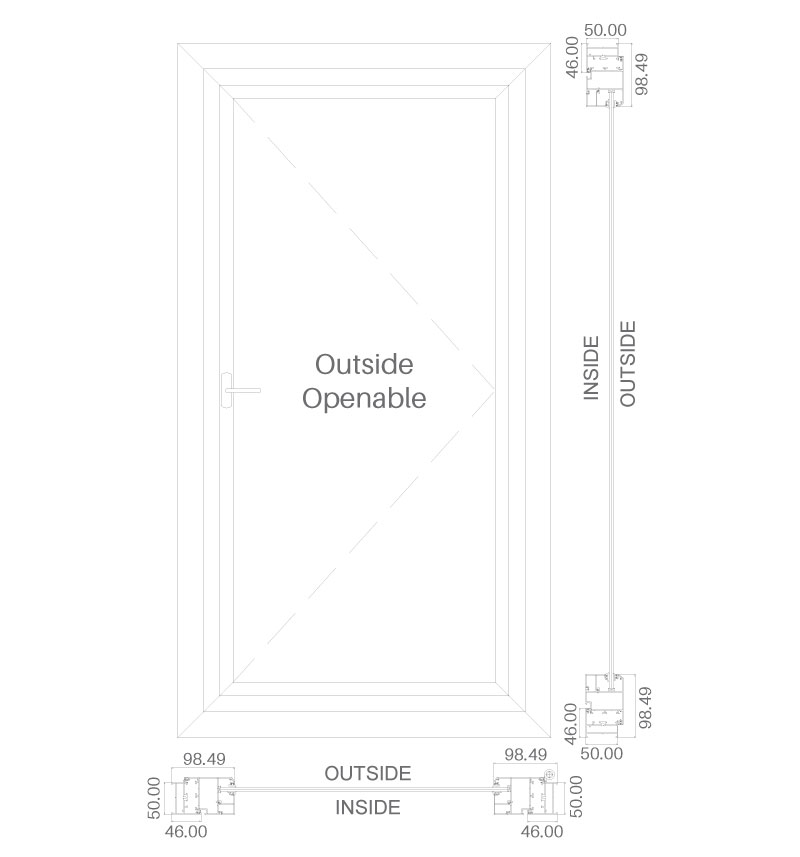

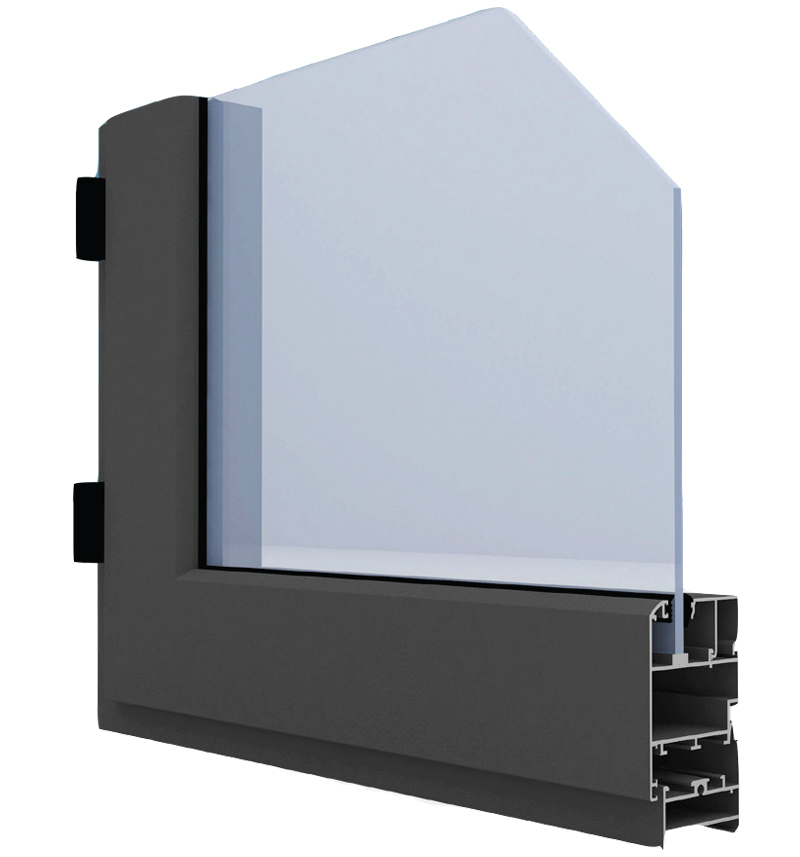

The CW-50 is the epitome in casement windows. Exclusively engineered for luxurious spaces like private villas, hotels, restaurants and corporate offices. This range aims for style, class and luxury. The most important benefit in this system is that, unlike other luxurious, aesthetic grandeur that you buy, this requires little to no maintenance and works and looks seamless for decades to come.
Shutter Size - 58 mm x 78.5 mm
Frame Size - 50 mm x 46 mm
Window Height - Max. 2000 mm
Sash Width - Max. 700 mm
Sash Weight - Max. 80 Kg.
Hardware - Single / Multi-point Locking
Hinge - Butt Hinge / Friction Hinge
Joinery Detail - 45° With corner connector
Glazing Options - Single / Laminated / DGU / DGU With Integrated Blinds
Glazing Thickness - Min. 5 mm to Max. 39 mm (With Glazing Clip)
